Description
-
TVCS System-TVCS for steady and efficient operation.
Kubota’s TVCS (Three-Vortex Combustion System) is a revolutionary system that creates three vortexes within the combustion chamber in order to produce an air/fuel mixture with a uniform spray and an optimum average particle size. This ideal air/fuel mixture, in turn, ensures complete combustion for greater power output and more steady operation.- TOTAL DISPLACEMENT
- 340 – 487(CC)
-

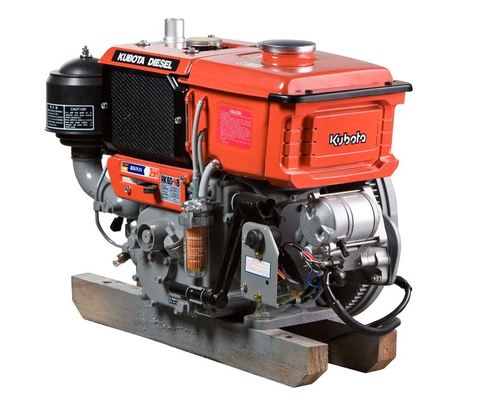

MODEL RK 60 RK 70 RK 95 SPECIFICATIONS Type Horizontal water-cooled, 4-cycle diesel engine Horizontal water-cooled, 4-cycle diesel engine Horizontal water-cooled, 4-cycle diesel engine Number of Cylinders 1 1 1 Bore & Stroke 76mm x 75mm 80mm x 75mm 86mm x 84mm Total Displacement (cc) 340 376 487 Combustion System E-TVCS E-TVCS Direct injection system Compression Ratio 24 24 18 Cooling System Radiator Radiator Radiator Max Output (kW/rpm) 4.48/2400 5.22/2400 7.09/2400 Continuous Rates Output (kW/rpm) 3.36/2200 4.48/2200 5.97/2200 Maximum Torque (kgf.m/rpm) 1.95/1800 2.26/1800 3.08/1800
