Description
vailable Options:
- RA03022ADAE: 50 Gal
- RA03022ADAL: 130 Gal

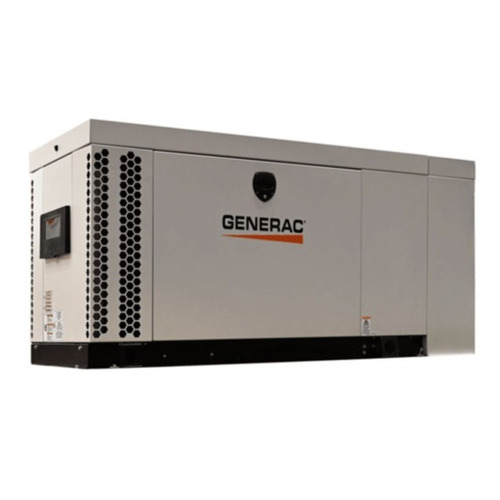

The 120/240-Volt Generac 30kW Generator Protector Diesel Series is a powerful backup solution designed to keep homes and businesses running smoothly during power outages. Whether for residential or commercial use, this generator ensures uninterrupted operation of essential systems, preventing costly disruptions and inconvenience.
Within seconds of a power failure, the Generac 30kW Diesel Generator automatically starts, restoring electricity to critical appliances and equipment. This ensures that refrigeration, HVAC systems, office equipment, security systems, sump pumps, and lighting continue to function without interruption.
Features:
- INNOVATIVE DESIGN & PROTOTYPE TESTING are key components of GENERAC’S success in “IMPROVING POWER BY DESIGN.” But it doesn’t stop there. Total commitment to component testing, reliability testing, environmental testing, destruction and life testing, plus testing to applicable CSA, NEMA, EGSA, and other standards, allows you to choose GENERAC POWER SYSTEMS with the confidence that these systems will provide superior performance.
- SOLID-STATE, FREQUENCY COMPENSATED VOLTAGE REGULATION: This state-of-the-art power maximizing regulation system is standard on all Generac models. It provides optimized FAST RESPONSE to changing load conditions and MAXIMUM MOTOR STARTING CAPABILITY by electronically torque-matching the surge loads to the engine. Digital voltage regulation at ±1%.
- TEST CRITERIA
- PROTOTYPE TESTED
- SYSTEM TORSIONALTESTED
- NEMA MG1-22 EVALUATION
- MOTOR STARTING ABILITY
- SINGLE SOURCE SERVICE RESPONSE: from Generac’s extensive dealer network provides parts and service know-how for the entire unit, from the engine to the smallest electronic component.
- TRUE POWER™ ELECTRICAL TECHNOLOGY: Superior harmonics and sine wave form produce less than 5% Total Harmonic Distortion for utility quality power. This allows confident operation of sensitive electronic equipment and micro-chip based appliances, such as variable speed HVAC systems.
- GENERAC TRANSFER SWITCHES: Long life and reliability are synonymous with GENERAC POWER SYSTEMS. One reason for this confidence is that the GENERAC product line includes its own transfer systems and controls for total system compatibility.
- NFPA 110 CAPABILITY: Generator comes able to support NFPA 110 controller requirements. Requires the addition of an optional NFPA 110 controller accessory kit.
Specifications:
- Generator
- Type: Synchronous
- Rotor Insulation Class: F (15 & 20 kW)
- Stator Insulation Class: H
- Telephone Interference Factor (TIF): <50
- Alternator Output Leads 1-Phase: Three wire
- Alternator Output Leads 3-Phase: Six wire
- Bearings: Single Sealed
- Coupling: Direct, Flexible Disc
- Excitation System: Direct
- Total Harmonic Distortion: < 5%
- Voltage Regulation
- Type: Electronic
- Sensing: Single-phase
- Regulation: Voltage and frequency regulation designed for sensitive electronics
- Features: Adjustable voltage & gain
- Generator Specifications
- Type: Electronic isochronous
- Steady State Regulation: Voltage and frequency regulation designed for sensitive electronics
- Electrical System
- Battery Charge Alternator: 85 Amp – 15 & 20 kW
- Static Battery Charger: 5 Amp
- Recommended Battery: (battery not included) Group 27F, 700 CCA
- System: Voltage 12 volts
- Alternator Specifications
- Revolving field heavy duty generator
- Directly connected to the engine
- Operating temperature rise 120 °C above a 40 °C ambient
- Class H insulation is NEMA rated
- Class F insulation is NEMA rated
- All models fully prototype teste
Application and Engineering Data:
- Engine Lubrication System
- Oil Pump Type: Gear
- Oil Filter Type: Full flow spin-on canister
- Crankcase Capacity: Contact Factory – 30 kW
- Enginer Cooling System
- Water Pump: Pre-lubed, self-sealing
- Fan Speed – RPM: 30 kW
- Fan Diameter – mm (in): Contact Factory – 30 kW
- Fan Mode: Pusher
- Fuel System
- Fuel Type: ULSD (Ultra Low Sulfur Diesel)
- Fuel Pump Type: Mechanical engine driven gear
- Injector Type: Mechanical
- Fuel Supply Line – mm (in): 7.9 (0.31)
- Fuel Return Line – mm (in): Contact Factory – 30 kW
- Fuel Specification ASTM: Contact Factory – 30 kW
